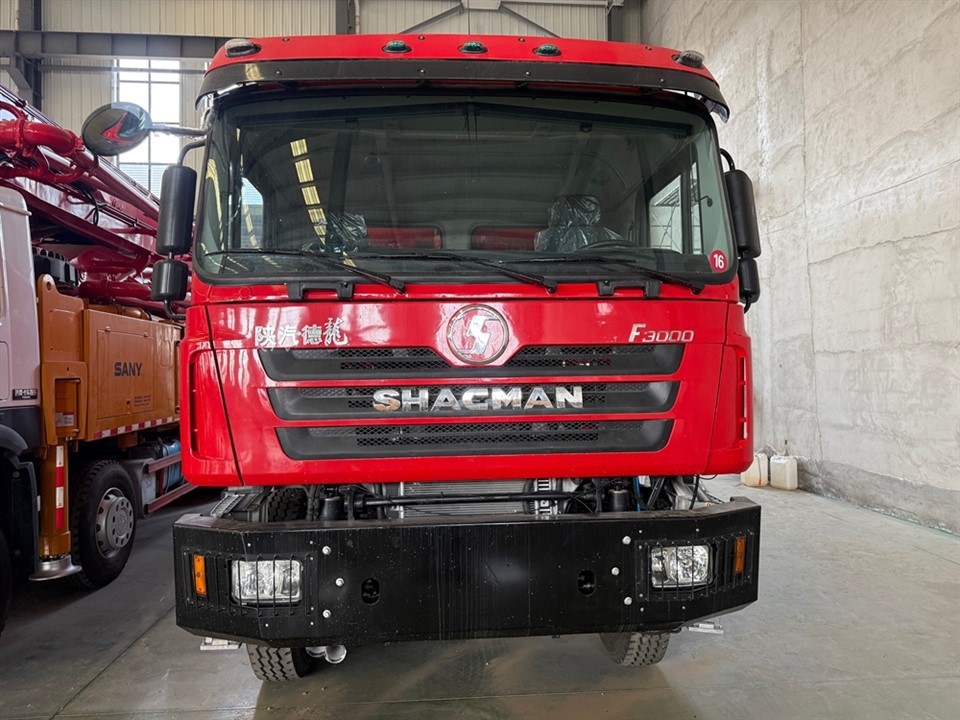

Shandong Huaqi Automotive Technology Co., Ltd. is one of the leading manufacturers and suppliers of shacman f3000 dump truck in China. If you're going to wholesale classy shacman f3000 dump truck made in China, welcome to get free sample from our factory. All customized products are with high quality and low price.
Technical Parameters
|
Category |
Parameter |
Specification |
|
Basic Information |
Model No. |
SX3316DR426 |
|
Drive Type |
8×4 (4-axle) |
|
|
Wheelbase |
1800 + 4175 + 1400 mm |
|
|
Overall Dimensions (L×W×H) |
10.75 × 2.49 × 3.54 m |
|
|
Dump Body Dimensions (Typical) |
7.6 × 2.3 × 1.5 m (customizable) |
|
|
Curb Weight |
~15.4 tons |
|
|
Rated Payload |
~15.4 tons |
|
|
Gross Vehicle Weight (GVW) |
31 tons |
|
|
Approach/Departure Angle |
17° / 24° |
|
|
Powertrain |
Engine Model |
Weichai WP12.375E50 (Inline 6-cylinder) |
|
Displacement |
11.596 L |
|
|
Max Power |
375 HP |
|
|
Max Torque |
1800 N·m @ 1000 - 1400 rpm |
|
|
Emission Standard |
Euro 5 |
|
|
Transmission |
Fast 12JSD180T (12-speed manual) |
|
|
Chassis |
Front Axles |
2 × 9-ton capacity |
|
Rear Axles |
2 × Hande 16-ton double reduction axles |
|
|
Rear Axle Ratio |
5.262 / 5.92 (heavy-duty preferred) |
|
|
Frame |
Double-layer high-strength steel |
|
|
Suspension |
Front 10-leaf, Rear 12-leaf multi-leaf springs |
|
|
Tire Size |
12.00R20 16PR |
|
|
Body & Brakes |
Dump Body Material |
U-shaped/rectangular high-strength steel (floor: 8 - 10 mm, side wall details) |
|
Lifting System |
Front-mounted hydraulic system, max lift angle ~45° |
|
|
Brake System |
Dual-circuit air brake + ABS + WEVB engine brake |
|
|
Cab |
Type |
F3000 flat-roof cab, 4-point suspension |
Product Advantages
Proven & Reliable Powertrain
Adopts the classic "Golden Power Chain": Weichai engine + Fast 12-speed manual transmission + Hande heavy-duty rear axles. Strong low-speed torque, stable performance, high durability, and easy maintenance.
Heavy-duty Reinforced Chassis
Double-layer high-strength steel frame, reinforced leaf spring suspension, high load capacity, strong anti-twist ability, suitable for long-term heavy-duty operation on rough roads.
Excellent Off-road Performance
High ground clearance, large approach and departure angles, strong passability in construction sites, mines and muddy road conditions.
High Cost-Effectiveness
Lower purchase cost, widely available spare parts, low maintenance cost, high attendance rate, and fast return on investment.
Practical & Durable Structure
Simple and sturdy interior, less vulnerable electronic components, strong anti-dust and anti-vibration performance. The cargo body is made of high-strength steel, wear-resistant and impact-resistant.
Efficient Hydraulic Lifting System
Front-mounted hydraulic cylinder, stable lifting, fast unloading, high working efficiency.
Main Applications
- Mining transportation: Coal, ore, stone haulage in mines and quarries
- Urban muck & construction waste transport
- Infrastructure construction: Earthwork, gravel, backfill materials for roads, bridges, dams
- Sand & gravel building materials transportation
- Bulk cargo and short-to-medium distance heavy load logistics
Common Problems
Engine
Lack of power, weak climbing ability
Engine overheating / high water temperature
Black smoke, abnormal idle speed
High fuel consumption
01
Chassis & Suspension
Abnormal tire wear, vehicle deviation
Steering wheel shaking
Rear axle noise or overheating
Leaf spring breakage or U-bolt loosening
02
Brake System
Weak braking, long braking distance
Air leakage in the air circuit
Brake dragging or locking
Abnormal braking noise
03
Hydraulic Lifting System
Slow lifting or failure to lift
Automatic dropping of the dump body
Vibration or abnormal noise during lifting
Hydraulic oil leakage
04
Electrical & Cab
Cab vibration and abnormal noise
Lights, wiper or horn malfunction
Frequent fuse blowing
Instrument abnormal display
05
