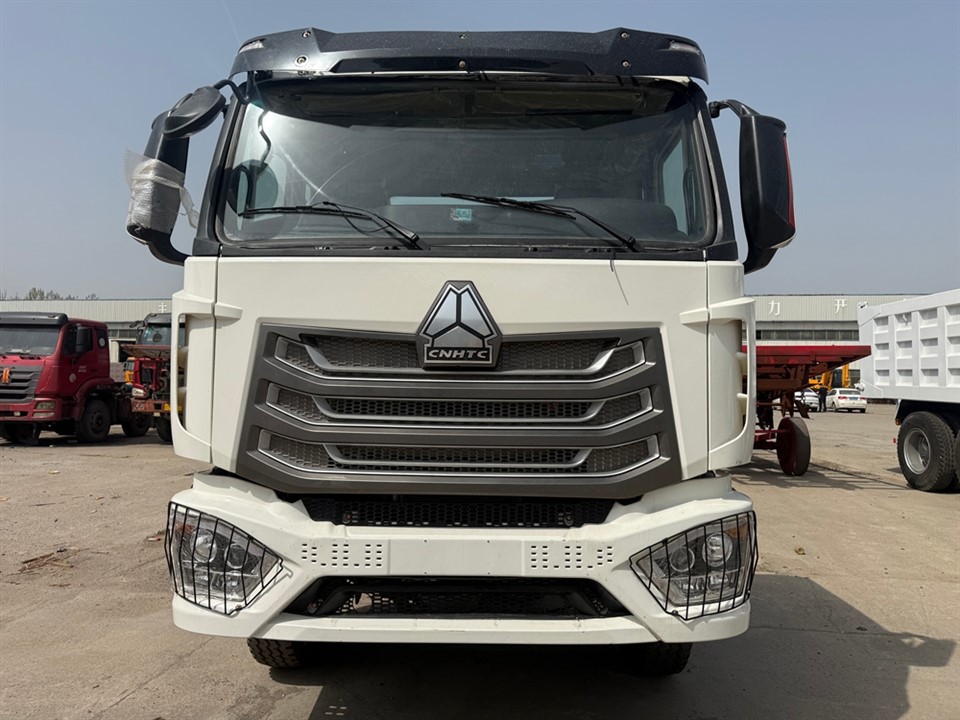

Shandong Huaqi Automotive Technology Co., Ltd. is one of the leading manufacturers and suppliers of howo nx tractor truck in China. If you're going to wholesale classy howo nx tractor truck made in China, welcome to get free sample from our factory. All customized products are with high quality and low price.
Key Specifications (Based on the Mainstream 6x4 400/460 HP Variants)
Basic Information
| Official Model | ZZ4257V344JB1 (Mainstream Variant) - China National Heavy Duty Truck Group Co., Ltd. |
| Drive Type | 6x4 - China National Heavy Duty Truck Group Co., Ltd. |
| Wheelbase | 3400 + 1400 mm |
| Vehicle Dimensions | 7050 × 2530 × 3880 mm |
| Curb Weight | 8.8 tons |
| Gross Vehicle Weight (GVW) | 25 tons |
| Gross Combination Weight (GCW) | 40 tons |
| Max. Speed | 89–110 km/h |
Engine Specifications
| Engine Model | Weichai WP10.5H400E62 | Weichai WP10.5H460E62 |
| Displacement | 10.5 L | 10.5 L |
| Horsepower | 371HP/380HP | 400HP/460HP |
| Max. Horsepower | 400 HP | 460 HP |
| Max. Power | 294 kW | 338 kW |
| Max. Torque | 1900 N·m | 2100 N·m |
| Torque Range | 1000–1400 rpm | 1000–1400 rpm |
| Emission Standard | China VI | China VI |
Chassis & Transmission
Transmission:
Sinotruk HW19710 (10-speed), HW19712 (12-speed), HW 16-speed (AMT)
01
Rear Axle:
MCY13JGS 13-ton Class Dual Rear Axles
02
Rear Axle Ratio:
3.08 / 3.7 / 4.11 (Optional)
03
Tire Specifications:
12R22.5, 315/80R22.5 - Sinotruk
04
Fuel Tank Capacity:
600 L (Aluminum Alloy)
05
FAQ
1. Insufficient Power / Sluggish Acceleration
Causes: Clogged air filter, air leaks in the intake pipe, dirty fuel filter, faulty fuel injectors, urea system malfunction (for National VI emission standards).
Solutions: Clean/replace the air filter, check intake pipe seals, replace the fuel filter, clean the fuel injectors, inspect and repair the after-treatment system.
2. Difficulty Shifting Gears / Unable to Engage Gear
Causes: Pressure loss or fluid leaks in the clutch master cylinder, improperly adjusted clutch cable, low transmission fluid level, jammed shifting mechanism.
Solutions: Replace the clutch master cylinder and bleed the system, adjust the clutch free play, top up transmission fluid, inspect and repair the shift forks and mechanism.
3. Engine Overheating / High-Temperature Warning
Causes: Low coolant level, clogged radiator, faulty thermostat, loose fan belt, damaged water pump.
Solutions: Top up coolant, clean the radiator, replace the thermostat, adjust/replace the fan belt, inspect and repair the water pump.
4. Soft Brakes / Long Braking Distance
Causes: Worn brake pads, low brake fluid level, air leaks in the brake wheel cylinders, air trapped in the brake lines.
Solutions: Replace brake pads, top up brake fluid, inspect and repair wheel cylinder seals, bleed the brake system.
